Smart Anti-Snoring Pillow Flexible Sensor FCS-01
Ultra-Thin
Strong Bending Resistance
Swift Response
Highly Durable
Easy Detection
Multi-Touch and Single-Point Detection
The FCS-01 is an ultra-thin flexible sensor, that’s less than 0.6mm thick (excluding gum). With exceptional bending resistance and quick response time, it has passed a pressing test of over 1 million cycles, ensuring long-lasting and reliable performance. Experience the future of sensing technology today.

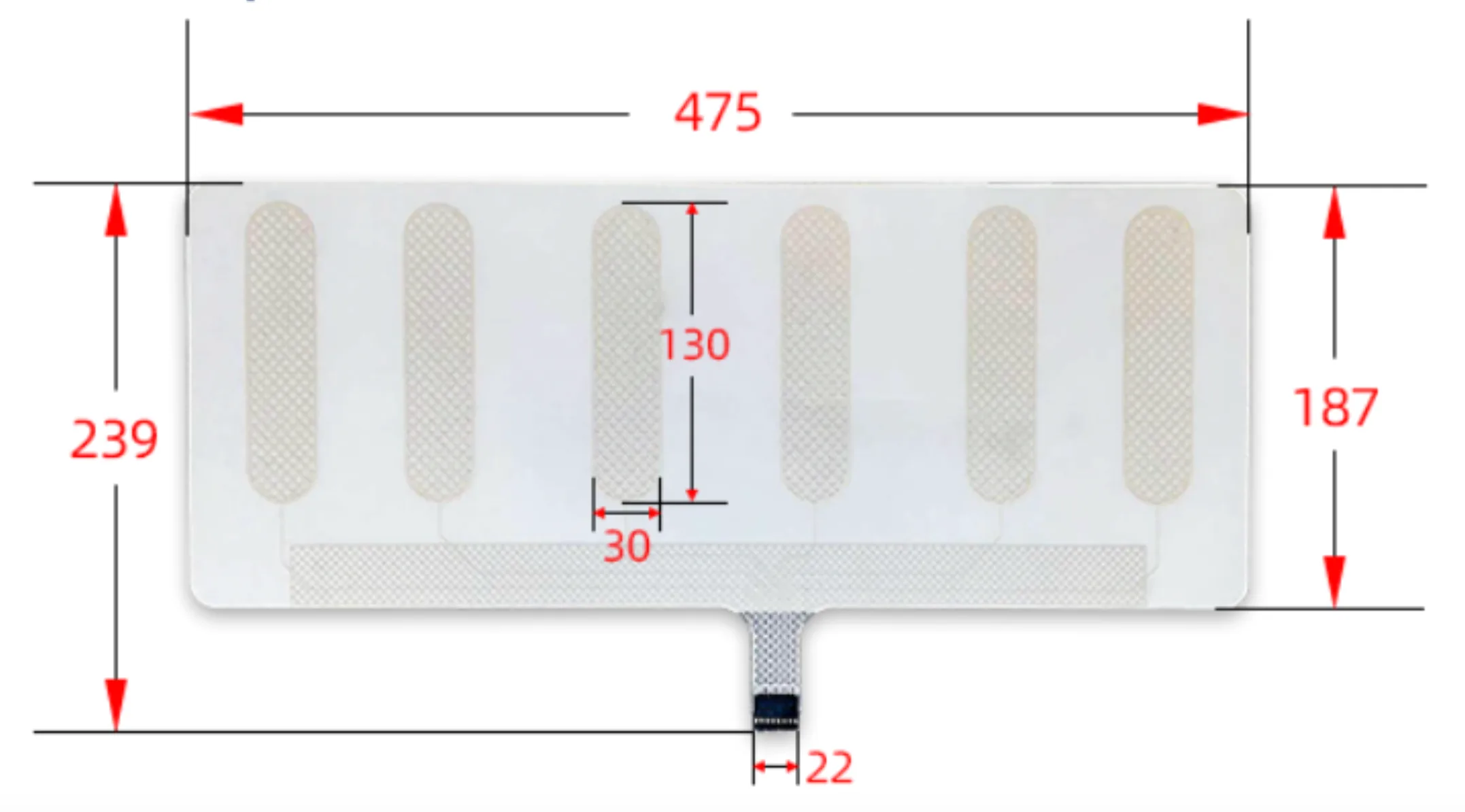

Logo | Size | |
Length | 475 mm | |
Width | 239 mm | |
Sensitive (Single) | Length | 130 mm |
Width | 30 mm | |
Pin Pitch | 2.54 | |
Tolerance | 0.2 |
- Instruction for Use:When using the FCS-01 flexible pressure sensor, it is important to follow these guidelines for optimal performance:
- Place the pressure-sensitive zone of the sensor on a firm, flat surface. Avoid using it on curved or irregular surfaces, as this can cause the sensor to be conductive even without pressure, affecting its response.
- When using the sensor on rigid and hard surfaces where the contact area exceeds the sensitive area, it may result in a small and unstable pressure response. To mitigate this, we recommend attaching a round soft rubber pad to the center of the sensitive area. The pad should have a diameter slightly smaller than the sensitive area, and its surface area should be at least 60% of the sensitive area. This ensures optimal performance and stability during pressure measurements.
- Use double-sided tape to securely fix the sensor on the supporting surface. Ensure that the surface is clean and tidy before applying the tape. We recommend using 3M brand double-sided tape, which provides reliable adhesion.
- Once pressure is applied to the sensor and held, there may be a slight drift in the output resistance value over time, usually within a 5% range. To minimize this error, timing calibration is recommended. During calibration, it is important to match the waiting time after applying pressure with the waiting time in actual applications.
Since the force state of the sensor can vary in different scenarios, we advise users to arrange the sensor according to their specific application needs. Conducting drift parameter testing tailored to their use case will help optimize the sensor’s performance and ensure accurate measurements.
By following these guidelines, you can ensure optimal performance and accuracy when using the FCS-01 flexible pressure sensor.

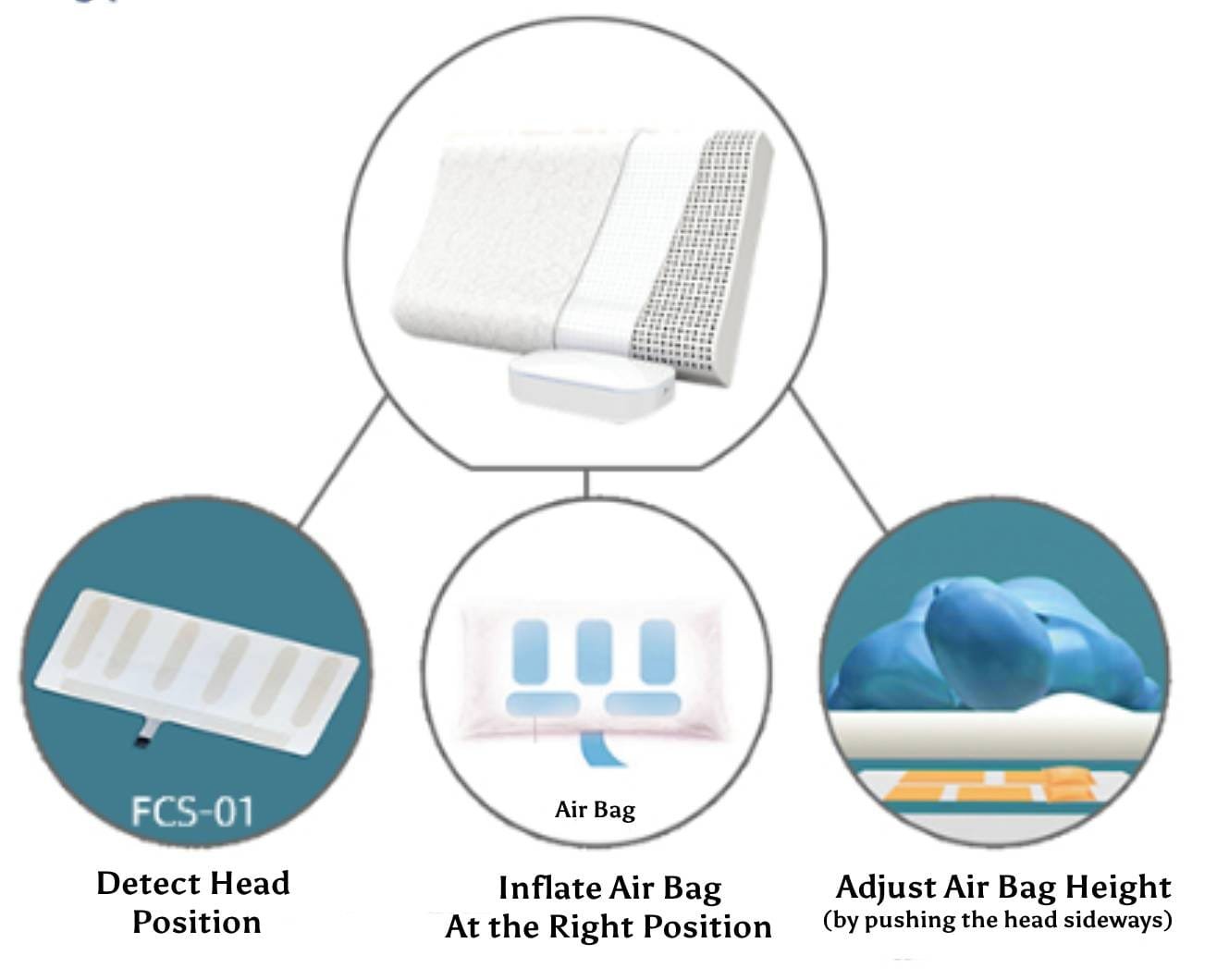

Smart Anti-Snoring Pillow Flexible Sensor FCS-01
Experience the future of sleep technology today!
Introducing the FCS-01 Smart Anti-Snoring Pillow with Flexible Sensor – a cutting-edge sleep innovation designed to enhance your overall sleep experience. This pillow features a capacitive sensor technology that detects pressure applied to its surface, enabling precise measurement of pressure and resistance. As pressure increases, the output resistance decreases, allowing for accurate monitoring and analysis.
This versatile sensor pillow finds applications in various domains such as smart household appliances, automotive electronics, smart robots, medical beauty, and more. Whether you’re seeking a quieter night’s sleep, optimizing your smart home, or exploring innovative healthcare solutions, the FCS-01 Smart Anti-Snoring Pillow with Flexible Sensor is the perfect companion.

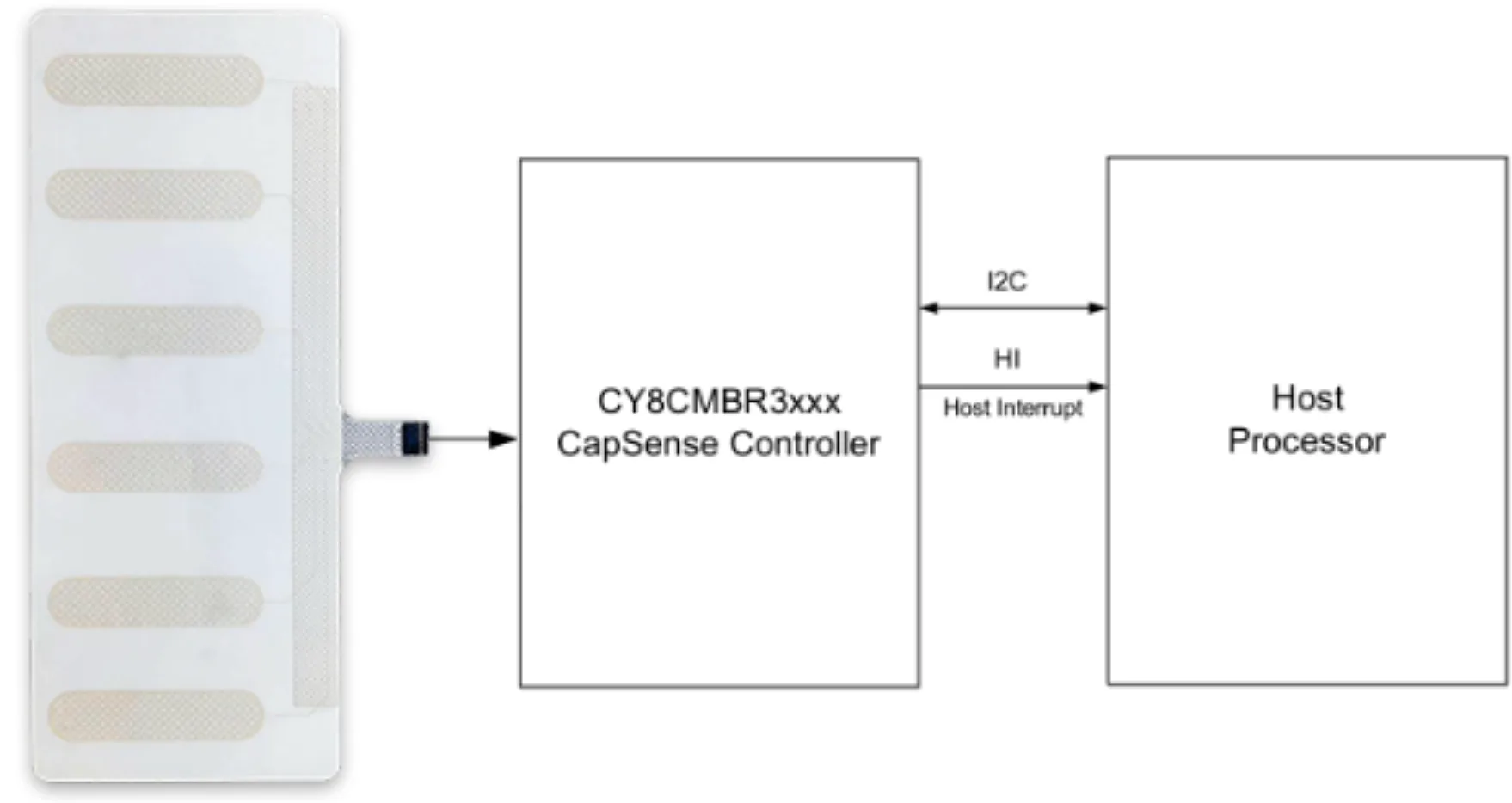

The FCS-01 flexible pressure sensor is a non-polar component with no directional requirements in the circuit, offering versatility and ease of integration.
