Leanscan Pressure Acquisition System MF 6060
Large Detection Area
Dense Point Distribution
Wide Pressure Range
High Weight Limitation
Quick Response Time
Customizable
The MF 6060 Array sensor is an exceptional innovation that establishes a remarkable standard in macro-level, high-performance pressure sensing. There are 3600 pressure points within the pressure sensitive area

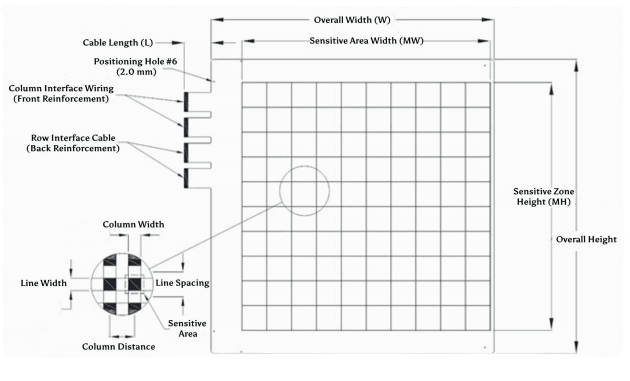

| Dimensions | |
| Overall Width | 456.36 mm |
| Overall Height | 474.96 mm |
| Lead Length | 50 |
| Thickness | <0.6mm |
| Pressure Sensitive Area | |
| Array Width | 400 mm |
| Array Height | 400 mm |
| Row Width | 4.0 mm |
| Line Spacing | 6.712 mm |
| Number of Rows | 60 |
| Column Width | 4 mm |
| Column Spacing | 6.712 mm |
| Number of Column | 60 |
| Total Pressure Points | 3600 |
Interface Specifications
The sensor is built with two interfaces: the row and column interface.
The Row Interface is reinforced on the back and the contact electrode is on the front. Spacing is 1.0mm and it is recommended to use 30P-1.0mm-top connection FFC/FPC.
The Column Interface is reinforced on the front and the contact electrode is on the back. Spacing is 1.0mm and it is recommended 30P-1.0mm-downlink FFC/FPC.
| Pressure Range | |
| Effective Detection Range | 1Mpa |
| Maximum Pressure | 10Mpa |
The MF-6060 has undergone rigorous testing and has obtained RoHS certification. This signifies its compliance with international standards for environmental protection, assuring users of its quality and safety.
Leanscan Pressure Acquisition System MF 6060
The Leanscan Pressure Acquisition System MF 6060 offers a comprehensive and precise analysis of pressure measurements, surpassing general pressure measurement technology. With multiple display modes, you can visualize pressure distribution data in real-time, enabling a deeper understanding of the subject at hand.
The system offers two analysis methods: data statistical analysis and joint analysis. This flexibility allows users to select the most suitable data analysis approach based on their specific needs.
The MF 6060 Software
The system comes with a software that provides advanced features such as data saving, playback, and real-time display of pressure views.
The main functions include real-time display of 2-dimensional and 3-dimensional pressure distribution data, providing a visual representation of pressure patterns. It also offers charts and data analysis capabilities, allowing for in-depth examination and interpretation of the collected data. The powerful camera function enables users to capture and save current pictures and data for further analysis or documentation purposes.
With the ability to open multiple playback windows and view real-time readings simultaneously, you can compare and analyze different data sets conveniently. The system also displays peak values and the center of gravity, providing additional insights into pressure dynamics.
Furthermore, the Leanscan system allows for the output of data files and AVI files, facilitating data sharing and integration with other applications or systems.
The MF 6060 is a piezoresistive pressure sensor that operates based on the principle of converting an external pressure stimulus applied to the device into a measurable change in resistance.
