The YD-SF2513 piezoelectric sensor is characterized by its ultra lightweight design which can be tailored to meet the unique requirements of various applications. It’s customizable build ensures easy integration, allowing for optimal performance and functionality.

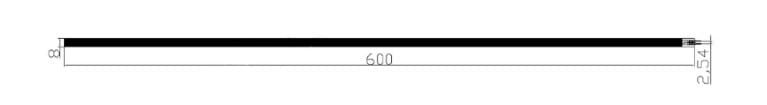

| Product Dimensions | |
| Length x Width | 600mm x 8mm |
| Sensitive Area | 5*(50*4.5) |
| Pin Spacing | 2.54 |
| Tolerance | ±1 |
| Film Thickness | 12-16μm |
- Sleek. The YD-SF08230 sensor’s sleek and compact design allows for effortless integration into microdevices, greatly expanding its range of applicability. This versatility enables its installation in various conditions, maximizing its potential for numerous applications.
- Featherweight. With an impressively lightweight design, this piezoelectric sensor can be easily mounted onto a diverse range of circuits, all while maintaining its exceptional multifunctionality and performance. This makes it an ideal solution for applications with stringent weight restrictions, where precision and reliability are paramount.
- Ultra Sensitive. Distinguished by its exceptional accuracy, the Flexniss YD-SF08600 flexible sensor possesses an impressive capability to detect even the most minute vibrations or impacts. Its heightened sensitivity guarantees that no valuable data escapes detection, enabling precise measurement and analysis of a diverse range of physiological signals or physical processes.
- Biocompatible.With its focus on reliability and safety, the YD-SF08600 flexible sensor is a dependable solution for measuring biological signals with precision, all while ensuring no adverse effects on the body. Its an asset for a multitude of biomedical applications, including wearable healthcare devices, medical monitoring systems, physiological research, and beyond.
| Product Performance | |
| Piezoelectric Constant | D33 18-30 pC/N |
| Operating Temperature | -20℃-100℃ |
| Capacitor | 2.5-4.5nF |
| Frequency Band | < 100 MHz |
| Number of Bends | ＞1 million times |
| Connection Method | Terminal Connection |
Flexible Piezoelectric Sensor YD-SF08600
Made from polymer-based materials, the YD-SF08600 flexible film sensor is complete with an insulating layer that protects the upper and lower electrodes, the PET substrate, and the main piezoelectric film layer.
This state-of-the-art piezoelectric sensor comes similar to the YD-SF08230, except for the length where the YD-SF08600 is almost twice as long. This model is a leading industrial sensor exceptional at capturing even the faintest physiological signals and vibrations.
The YD-SF08600 operates on a fundamental mechanism wherein external forces applied to the film or when the strip undergoes bending, it elicits the generation of an electrical signal. This signal is subsequently extracted through the connecting terminal and subjected to processing via a voltage or charge amplifier, alongside a compatible processor. Through this meticulous process, the desired results are obtained, enabling precise and accurate data analysis.
For optimal signal transmission, processing, and measurement, it is recommended to use a high input impedance preamplifier with the YD-SF08600 piezoelectric sensor. This helps amplify the delicate output electrical signal and ensures more accurate and reliable data in a wide range of applications.
Additionally, this model can be used with either a voltage generator or a charge generator.
