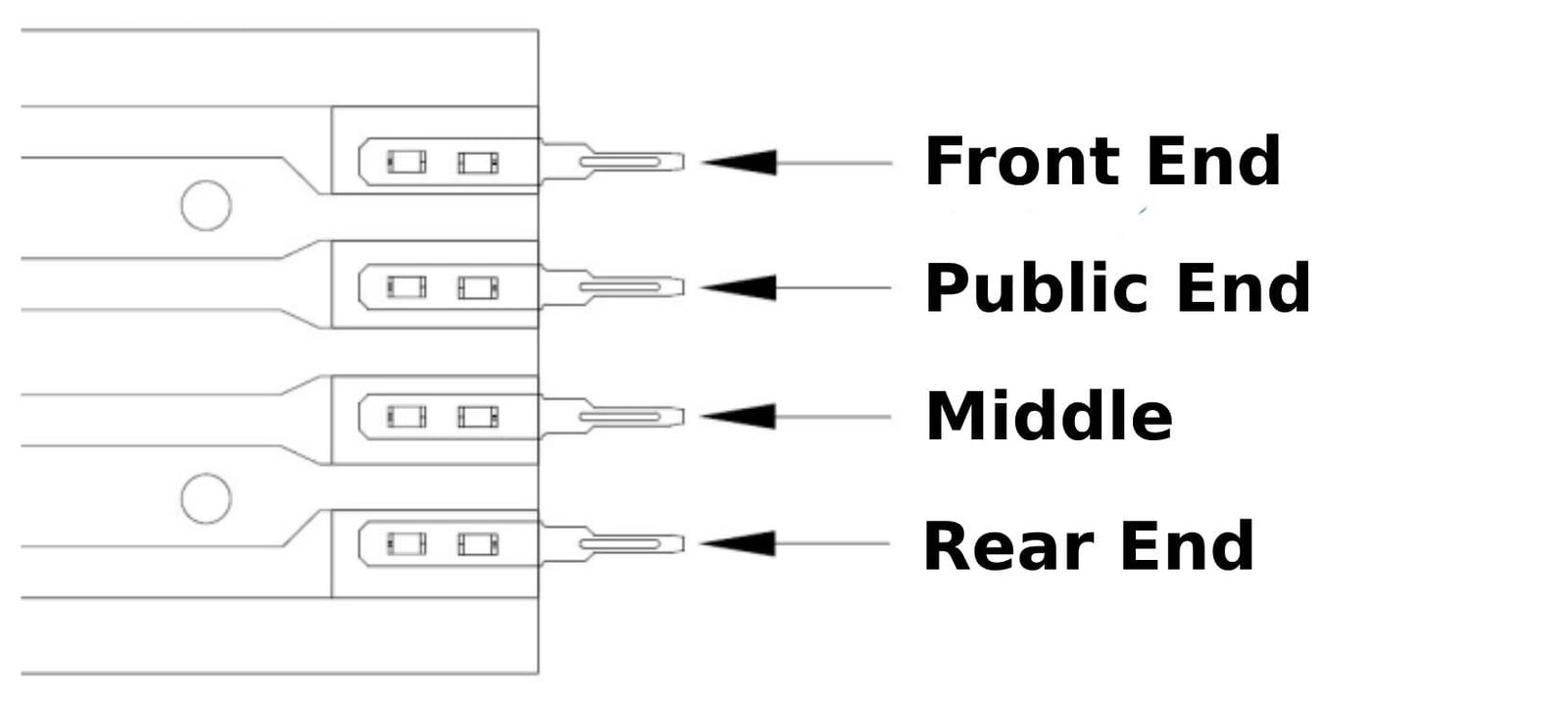

Featuring a slim-fit build, this flexible pressure sensor comes with a 4-terminal design that ensures efficient data exchange. The product dimension are as follows:
| Product Dimensions | |
| Model | EB78-330 |
| Length | 331 mm (excluding terminals) |
| Width | 78 mm |
| Sensitive Area | Front end: 64 * 13.5 Central End 1: 173.5 * 18.5 Central End 2: 27 * 13.5 |
| Pin Spacing | 5.08 |
| Product Performance | |
Model | EB78-330 |
| Thickness | <0.7mm (including adhesive) |
| Trigger Pressure | <0.2kg |
| Pressure Range | (0.2 – 20) kg |
| Durability | >1 million times |
| Operating Voltage | <20V |
| Working Current | <50mA |
| Trigger Resistor | <140Ω |
| Initial Resistance | >10MΩ (no load) |
| Operating Temperature | -40°C – 80°C |
Magnetic Interference | Not Generated |
| Electrical Discharge | Not Sensitive |
Flexible Film Pressure Sensor EB78-330
Introducing the Flexible Film Pressure Sensor EB78-330 — your solution for ultra-thin, high-performance sensing.
A breakthrough in sensor technology, the EB78-330 series sets a new standard with its ultra-thin profile, boasting a thickness not exceeding 0.7mm. This sleek design ensures smooth integration into a diverse range of applications without compromising on performance.
Efficient and Stable Operation:
Witness unparalleled efficiency with low power consumption and exceptional stability. The EB78-330 is engineered to deliver top-tier performance while maintaining minimal energy requirements. This unique combination of low power usage and stability ensures that the sensor operates reliably in diverse and demanding conditions.
Swift and Precise Responsiveness:
Experience a new standard in data acquisition with the EB78-330’s fast response time. In dynamic environments where quick and accurate measurements are paramount, this sensor rises to the challenge, providing the real-time monitoring and control needed for critical applications.
Reliability Across the Years:
Built for the long haul, the EB78-330 guarantees a prolonged operational lifespan. Its durable construction and quality components ensure consistent, reliable performance over time, minimizing the need for frequent replacements and contributing to a lower total cost of ownership.
Simplified Integration, Endless Possibilities:
The EB78-330 simplifies the complex with its user-friendly detection scheme, making integration into existing systems a breeze. This simplicity, combined with a customizable shape, opens the door to a multitude of applications across industries, offering adaptability and ease of use for engineers and developers alike.
Tailored to Your Needs:
Not just a sensor, the EB78-330 is a customizable solution. Its shape can be tailored to meet the specific requirements of your application, ensuring a perfect fit and optimal performance in any scenario and space availability.
