Flexible Film Pressure Sensor Digital Conversion Module MY2901
Multi-Channel Support
Simultaneous Measurement
4-8 Pressure Sensor Ports
Computer-Viewable Results
Low Power Consumption
The MY2901 comes in a compact 2 cm x 2.9 cm circuit manufactured from superior electronic materials.
| Item | Specification |
|---|---|
| MY2901 4-Channel | |
| Operating Voltage | 3.3V-5.0V (no voltage reverse protection) |
| Output Data | UART (3.3V Level) |
| Number of Sensor Interfaces | 4 |
| Number of Digital Output Interfaces | 4 |
| Analog Signal Sampling Frequency | 100Hz |
| Working Current | <30mA |
| Operating Temperature | -10°C-55°C |
| Size | 20 mm x 29 mm |
| MY2901 8-Channel | |
| Operating Voltage | 3.3V-5.0V (no voltage reverse protection) |
| Output Data | UART (3.3V Level) |
| Number of Sensor Interfaces | 8 |
| Number of Digital Output Interfaces | none |
| Analog Signal Sampling Frequency | 100Hz |
| Working Current | <30mA |
| Operating Temperature | -10°C-55°C |
| Size | 20 mm x 29 mm |

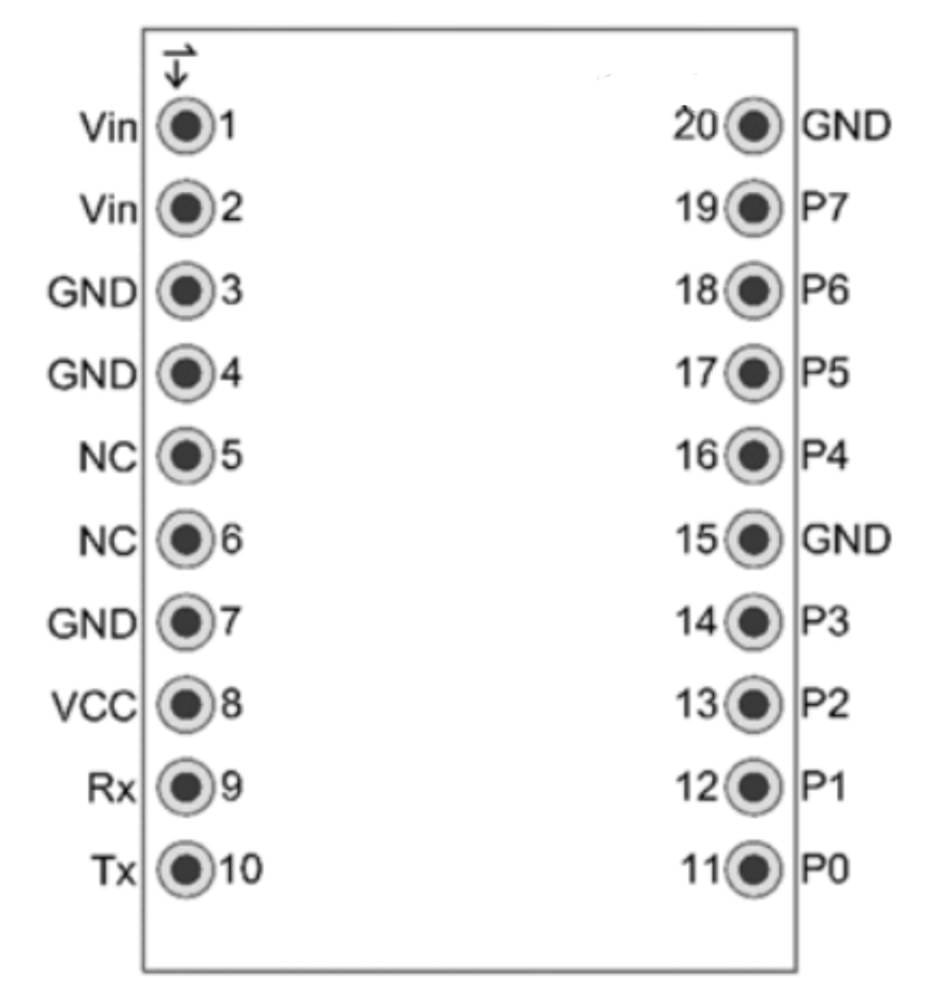

PARTS OF THE MODULE
20Common Ground Terminal of Digital Output Channels
| Pin Number | 4-Channel / 8 – Channel |
|---|---|
| 1-2 | Power Supply Voltage Input |
| 3-4 | Supply Voltage Ground Terminal |
| 5-6 | Reserve |
| 7 | Ground |
| 8 | Normal Working Voltage (3.3V) |
| 9 | UART (RXD) 0V-3.3V Data Input |
| 10 | UART (RXD) 0V-3.3V Data Input |
| 11 | Sensor Access Port 0 |
| 12 | Sensor Access Port 1 |
| 13 | Sensor Access Port 2 |
| 14 | Sensor Access Port 3 |
| 15 | Public Access Port of Sensor Channel (0-3) |
| 16 | Digital Output Channel 0 |
| 17 | Digital Output Channel 1 |
| 18 | Digital Output Channel 2 |
| 19 | Digital Output Channel 3 |
Flexible Film Pressure Sensor Digital Conversion Module MY2901
Designed to revolutionize pressure sensor measurements, the MY2901 comes in two variations to choose from — the 4-input and 8-input models — which offer unparalleled versatility and functionality.
The 4-Input Model
The 4-input model features four input channels, allowing you to connect and monitor up to four different pressure sensors simultaneously. This multi-channel support provides a comprehensive view of pressure readings, enabling you to gather more data in a single measurement session. With the convenience of a UART output signal, you can easily transmit the collected data to your computer. for further analysis and processing.
The 8-Input Model
Not to be outdone, the 8-input model takes it a step further by providing eight input channels. This expanded capacity allows you to monitor and evaluate a wider range of pressure sensors simultaneously, making it ideal for complex systems or applications that require a higher number of sensors.
Compatibility
The MY2901 is not only versatile in its compatibility but also suitable for a range of specific applications. It seamlessly integrates with the DF9-40 series, SF15 series, MD30 series, as well as ZNX insole sensors and ZNS glove sensors.
This compatibility ensures seamless integration and optimal performance, allowing you to leverage the full potential of these flexible sensors. Whether you are working with insole sensors or glove sensors, our module provides the perfect solution for accurate and reliable measurements, meeting the specific needs of your application.
Other Features
In addition to its impressive performance, the MY2901 boasts a compact size, making it easy to integrate into your existing setup without taking up much space. Its low power consumption ensures energy efficiency, reducing operational costs and making it suitable for long-term deployments.
The MY2901t is designed to simplify and streamline your testing and evaluation processes, saving you valuable time and effort. With computer-viewable results, you can conveniently monitor and analyze the collected data on your preferred device or platform using the TTL and USB module.
The MY2901 These are example circuit diagrams for the 4-channel and 8-channel MY2901 with the ZNS-01 insole flexible sensor.

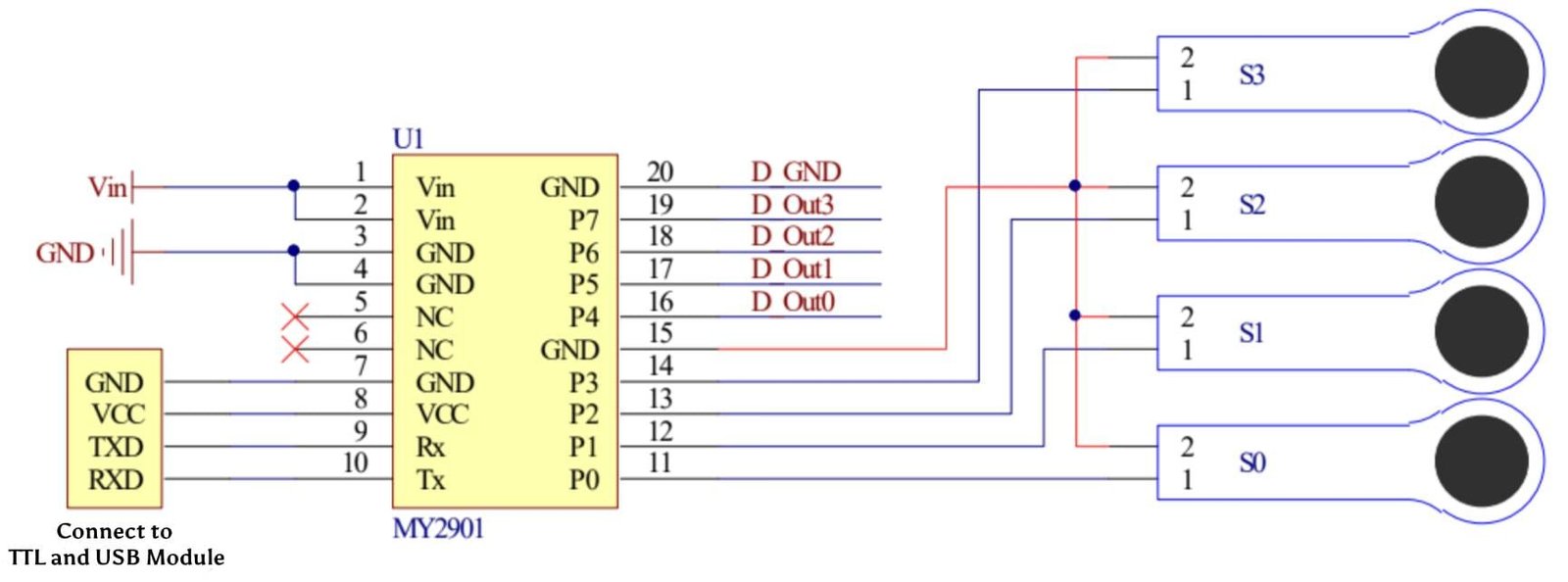

4-CHANNEL MODULE

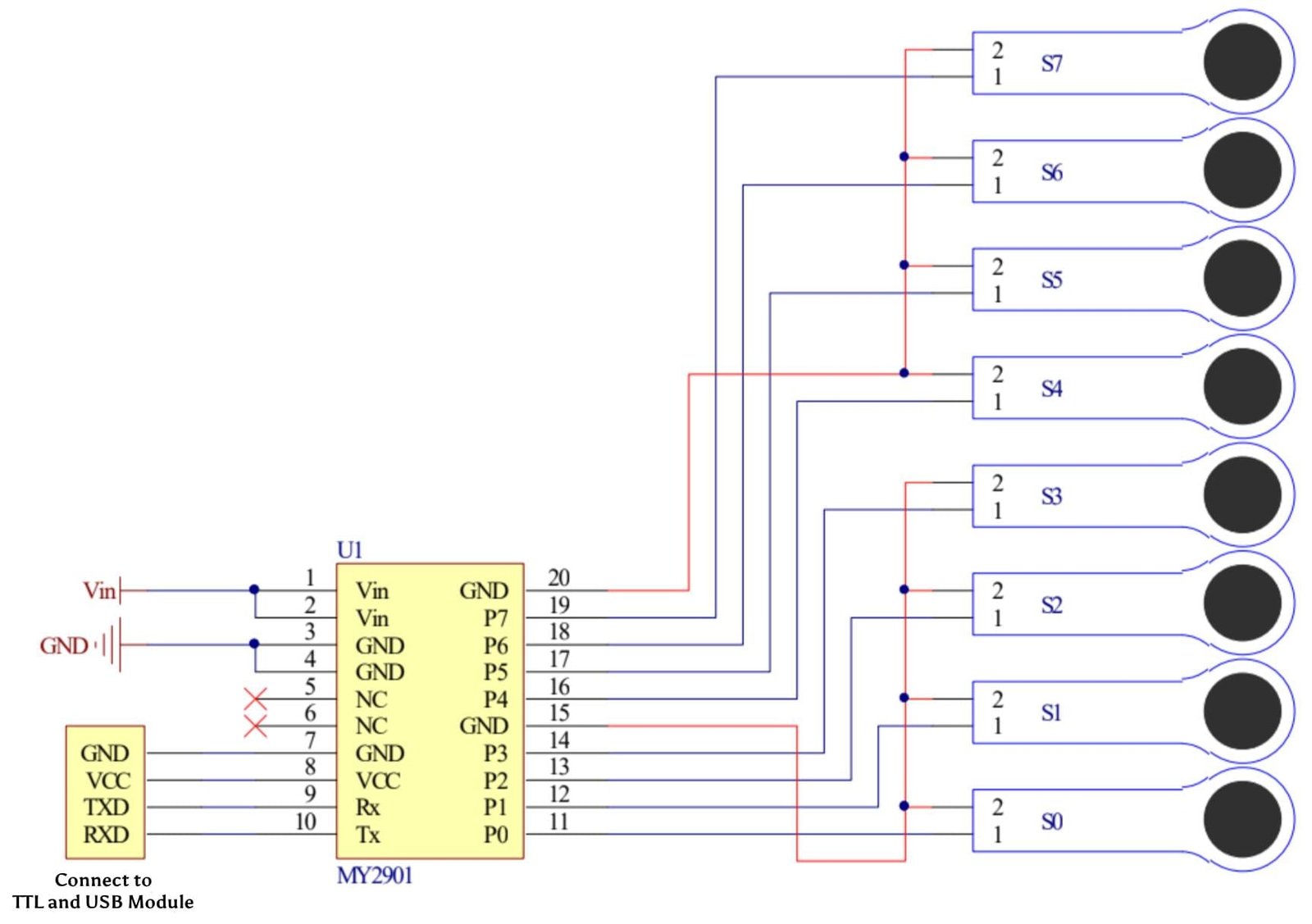

8-CHANNEL MODULE
