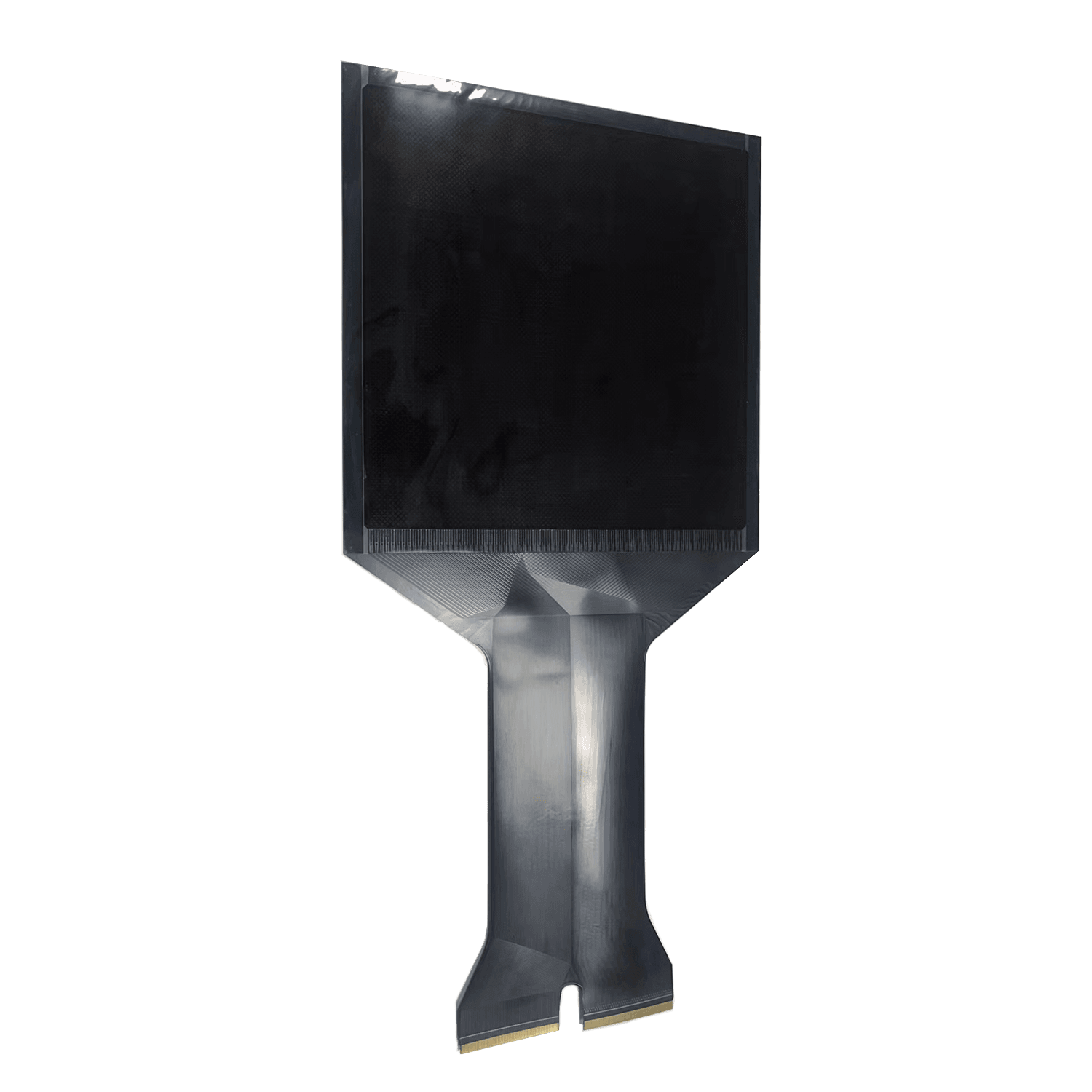

The MF 8080 Array sensor is an exceptional innovation that establishes a remarkable standard in macro-level, high-performance pressure sensing. There are 3600 pressure points within the pressure sensitive area.

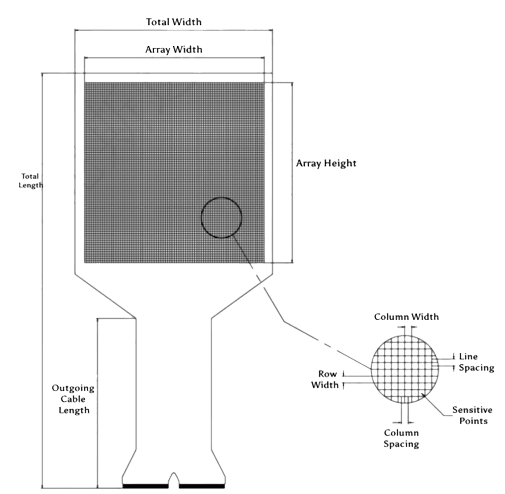

| Dimensions | MF8080 L | MF8080 S |
| Total Length | 368.5 mm | 325.5 mm |
| Total Width | 176 mm | 92 mm |
| Array Height | 160 mm | 80 mm |
| Array Width | 160 mm | 80 mm |
| Outgoing Cable Length | 150.7 mm | 209.2 mm |
| Sensitive Point Width | 2 | 1 |
| Sensitive Point Length | 2 | 1 |
| Sensitive Point Line Spacing | 2 | 1 |
| Sensitive Point Column Spacing | 2 | 1 |
| Sensitive Point Size | 2 x 2 | 1 x 1 |
| Total Number of Sensitive Points | 6400 | 6400 |
The MF 8080 comes also has a compatible handle acquisition model with the following dimensions :
| Model | MF8080 Handle |
| Scan Speed | 50 Hz |
| Scan Points | 6400 points |
| Interface Type | USB2.0, Type-C |
| Power Supply | 0.45A, USB Direct Power Supply |
| Pressure Resolution | 15bit |
| Indicator Light | none |
| Operating Temperature | -20°C – 60°C |
| Working Humidity | 0-95%RH |
| Shell Material | Aluminum Alloy |
Array Pressure Detection System MF 8080
The MF8080 series array pressure detection system is a comprehensive solution comprised of the MF8080 series array type pressure detection system. It consists of three main components: the flexible pressure sensor, sensor acquisition module, and host computer software.
The flexible pressure sensor generates a resistance signal that varies with pressure, which is then processed by the acquisition module. The signal undergoes filtering, amplification, conditioning, and digital conversion before being transmitted via the USB interface to a PC. Specialized software on the PC displays, analyzes, and saves the digital signal for user utilization.
The MF8080 series array pressure detection system finds extensive application in various fields such as sports running shoes, sleep monitoring, seat cushion detection, as well as electronic semiconductors, liquid crystal manufacturing, industrial automation, and automotive industries. Within the MF8080 series, there are different models available, including MF8080L and MF8080S, providing flexibility and options for specific use cases
The MF 8080 is a piezoresistive pressure sensor that operates based on the principle of converting an external pressure stimulus applied to the device into a measurable change in resistance.
