FAQS
Frequently Asked Questions
1、Classification and Definition of Flexniss' Flexible Sensors？
Our flexible sensors are divided into two major categories: flexible thin film pressure sensors and far-infrared flexible heating fabrics.Among them, flexible thin film pressure sensors are divided into flexible piezoresistive sensors and flexible piezoelectric sensors.
（1）Definition of flexible piezoelectric sensor
It converts external pressure signals into voltage signals for output through the piezoelectric effect of flexible sensing materials, realizing the detection of pressure.
（2）Definition of flexible piezoresistive sensor
It converts external pressure signals into resistance signals for output through the piezoresistive effect of flexible sensing materials, realizing the detection of pressure.
（3）Definition of far-infrared flexible heating fabric
By preparing a carbon nanomaterial film on a flexible fabric substrate and utilizing the far-infrared characteristics of carbon nanomaterials to form a unique heating mechanism. After passing direct current, the heating film releases far-infrared waves of 2-20 um. Not only is the electrothermal conversion efficiency high, but it also coincides with the far-infrared wavelength range of the human body. It conducts heat better to the human body and has physiotherapy effects at the same time.
2、What's the working principle of the flexible thin film pressure sensor?
The flexible thin film pressure sensor is a sensing device that can convert external pressure into electrical signals (voltage, resistance, current, capacitance) for output. Its working principle is to convert external pressure signals into electrical signals for output through the pressure-sensitive characteristics of flexible sensing materials. The output electrical signal changes with the change of pressure applied on the sensor surface. Through a specific pressure-electrical signal relationship, the pressure magnitude can be measured.
3、What functions can the pressure acquisition module, the array distributed detection system and the upper computer system achieve respectively? Do they support third party software?
1、Flexible pressure acquisition module (including MY2801 and MY2802) is used for the measurement and display of flexible piezoresistive pressure sensors.
Functions of MY2801 single-channel acquisition module
（1）There are multiple display methods for detected pressure: pressure value, AD value, pressure change curve.
（2）Low power consumption, powered by lithium battery/USB, with long battery life.
（3）Can store up to 2000 pressure detection records.
（4）Can be freely calibrated for more accurate detection.
（5）Communicates with the PC through the Micro USB interface.
Functions of MY2802 multi-channel acquisition module
（1）Freely turn on/off measurement channels.
（2）Can be freely calibrated for more accurate detection.
（3）Supports multiple pressure display units such as gf, Kgf, N.
（4）Low power consumption, powered by lithium battery/USB, with long battery life.
（5）Can simultaneously measure four flexible pressure sensors of different models.
（6）Can communicate with the PC through the Micro USB interface and save pressure data.
2、Array distributed detection system Leanscan（MF8080-Handle)
Leanscan is a high performance pressure distribution detection system mainly used to detect the pressure distribution between two contact surfaces.
The system consists of three parts: array sensor, collector and upper computer system. The sensor is made of flexible materials with high flexibility, ultrathin and bending resistance, and can accurately measure and analyze the pressure distribution data between contact surfaces.
The pressure distribution can be displayed in the form of a two dimensional heat map to show the pressure magnitude, or can be displayed in real time in a three-dimensional form.
The upper computer system has specific image saving and video saving functions and supports exporting data for data analysis and secondary development.

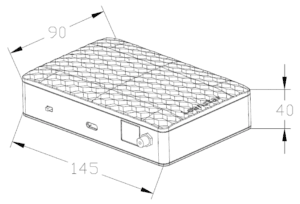

Leanscan Collector size specifications
| Model | MF8080-Handle |
| Scanning speed | 50Hz |
| Scanning points | 6400 (Max) |
| Interface type | USB2.0 and type-C |
| Power | 0.45A，USB direct power supply |
| Pressure resolution | 15bit |
| Working temperature | -20℃ ~ 60℃ |
| Working humidity | 0-85%RH |
4、What are the competitive advantages of Flexniss's flexible pressure sensors?
(1) High sensitivity
The flexible pressure sensor of Flexniss is prepared with highly sensitive flexible nano-sensitive materials, which can sense tiny pressure changes and meet the needs for various high-sensitivity pressure measurements.
(2) Wide measurement range
The flexible pressure sensor of Flexniss uses nano-sensitive materials with good mechanical properties, broadening the pressure detection range of the device.
(3) Small size and light weight
The flexible pressure sensor of Flexniss uses thin and lightweight flexible film materials, which can control the volume and weight of the entire sensor within a very small range, making this sensor widely applicable in various occasions with limited volume and weight.
(4) Good durability
The flexible pressure sensor uses polymer materials with extremely strong flexibility. After passing laboratory life tests of over a million times, it has good durability and reliability.
(5) Easy to integrate and install
The flexible pressure sensor has the advantages of being thin, light, and soft. It can adapt to curved surfaces and performs well in applications that require adhering to curved or complex-shaped surfaces. It is also convenient to be integrated and installed into various devices.
(6) Complete customized services and professional technical support.
5、What are the application fields of our flexible pressure sensors?
（1）Consumer electronics: pressure sensing detection for electronic pens, headphones, etc.
（2）Human-computer interaction: tactile perception of (humanoid) robots.
（3）Smart cockpit: (seat and steering wheel heating, seat cushion pressure sensing).
（4）Healthcare: (sleep monitoring, pulse monitoring, diabetic foot pressure detection, pressure ulcer prevention detection, far-infrared physiotherapy, sports health (sweat detection)).
（5）Battery (power/storage) charging and discharging safety detection.
（6）Smart wearable devices.
